Technical Data

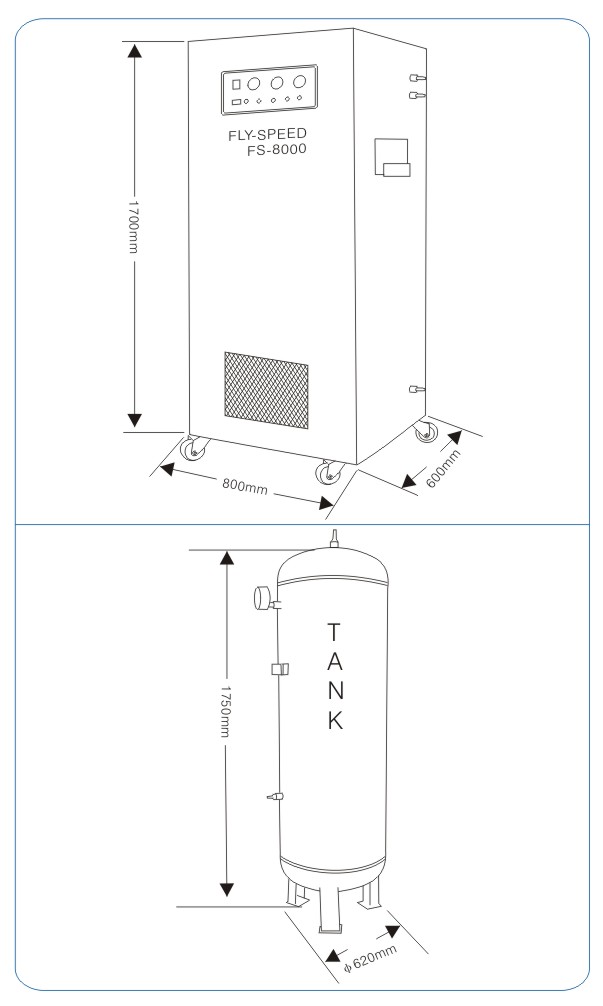

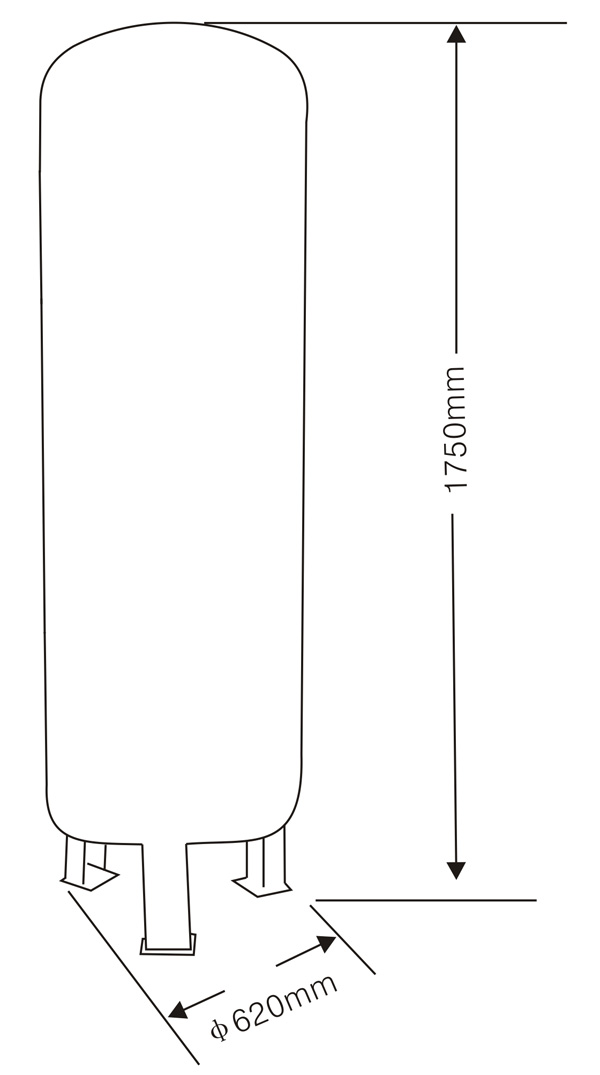

Vehicle Applicable:     Power supply :AC380V/50~60Hz Power : 2.0Kw Nitrogen Purity : 95~99.5% Operation Temp：+5℃~+40℃ Compressed Air Pressure Required：0.8~1.2Mpa Air compressor discharge rate ：＞1.08M3/Min No supercharger,Output Nitrogen Pressure : ≤101Psi/8Bar/0.8Mpa Supercharged Nitrogen Output ：≤232Psi/16Bar/1.6Mpa Nitrogen Output：160L/min Truck Tyre (10.00/20 R75 size)：15Tyres/Hour Dimension：1700(H)X930(L)X640(W)mm Net weight ：238 Kg Packing size：1770(H)X965(L)X770(W)mm Gross weight ：263 Kg Storage tank packing size ：620X1750(mm) Storage tank weight ：97 Kg (300L)

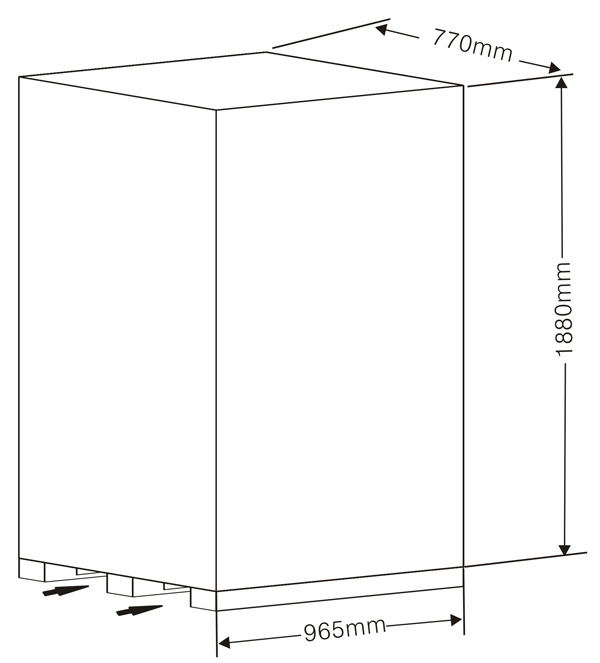

Dimension：1880(H)X965(L)X770(W)mm Please follow the personnel of the service for the member account number and password, then login to view, thank you! |
|||||||||
|
Tel：0760-86367288 Fax：0760-86361623 Addr: Bld. C2, Xinxu Jinwan Industrial Zone, No.6 Shengye Rd.,Sanxiang, Zhongshan, GD, China 528463 Copyright@FLY-SPEED AUTO-EQUIPMENT All Rights Reserved Site Visits：183443次 Admin | Mail Login | Design: 0086HX | |
Suitable for various truck and bus tyres.
